Wednesday, September 30, 2009

Yuke's SYMS GDB Impreza

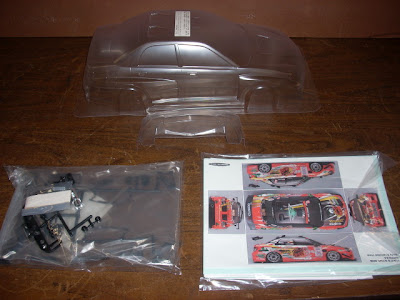

I got a Yuke's SYMS GDB Impreza Body Kit

SD-GDBFBS


Body Kit come with plastic parts and decals.


Plastic Parts


Decals.

Monday, September 28, 2009

New HD Light Weight Soild Axle Set

HD Light Weight Soild Axle Set

D-045

Sunday, September 27, 2009

2mm CDV Pin LF Axle Shaft

I got a 2mm CDV Pin LF Rear Axle Shaft for Drif Master and fit to BDM

D-034


Front Axle
D-037


Rear Axle
D-038


2mm CVD Pine Set
D-042

BD5 New Parts

Main Chassis for Straight Pake Battery
DB-002P


Upper Deck for Square Battery
DB-003CS


Battery Plate
BD-118G5


Center Link 8mm
BD-201R8

Good Year Racing Zero Crown

I got a Good Year Racing Zero Crown Body Kit

SD-ZCRBS

Body Shell come with Plastic Parts and Decales

Decales

Plastic Parts

Thursday, September 24, 2009

Yokomo Counter Gear Setting Sheet

D-048
Yokomo Counter Gear Setting Sheet By Hiroshi Suzuki

Thursday, September 10, 2009

CouterSteer Gear set from Yokomo

2 kind CounterSteer Gear set is released in the end of September by Yokomo.

D-048 standard road surfaces. 17x27
D-051 carpet & high grip road surfaces. 17x20

It's two kinds of Rear Over Drive Gear set come with solid axle.
These materials are an axle made by resin and steel gears.

Tuesday, September 8, 2009

Up Date My Counter Dori BDM Spec

My BD Setup, As of Sep 5th 09'

Mane things a 42T front pulley change to 40T and set a Cyclone belt on front it's looks good
and I changed a Novak Ballistic 8.5T Motor, It was wide throttle range and easy to controlled.

Over Drive Set Up

Front 40T Diff Pulley / 15T Drive Pulley = 2.67
Yokomo 15T Drive pulley ( ZM-674H )
Chainged Front Drive Belt for Cyclone ( Thansk info Poppe ) 66493

Rear33T Diff Pulley / 20T Drive Pulley = 1.65
Yokomo 33T Diff pulley ( ZD-503 )

Front & Rear Gear Ratio 1.62

Countersteer Setup
I think that runs are different by a road surface and the kind of the tires.
I tuned at Arai.
Track serface: Polished concrete
Tier; Kawada Plastic Drift Tier ( Medium )
Motor & ESC; Novak XBR with Ballistic 8.5 Motor

Front
6 deg camber
0mm Toe out
2mm, front kick up on 4deg Caster hubs.
6.0mm ride height60g bumper weight 1.5 toe block on the rear suspension mount
Soft Yok Ti springs
0 Tolrale Steering Brock ( SD-415SG )
Modified steering Lock and an Ackerman
Set a standerd Sway-Bar

Rear
1 deg camber
1mm kick up front
Medium Yok Ti Springs
5mm ride height
Rear Toe 1.5
Rear Toe Baer ( SD-300RR2 ) and Team Suzuki -0.5 Hub ( TS-2016 )
Set a thin ( Brack )Sway-Bar

Drive Train
Super gear 48Pitch 80T & 20T Pinion gear
Front One-Way ( BD-640T ) and Solid Axle ( BD-501SAS ) on Reara
Center one-way ( BD-671 ) Main drive gear adaputor



Saturday, September 5, 2009

New Body Kit D1 Version 1093 Speed S14 Silvia

I got a Yokomo New Body Kit D1 Version 1093 Speed S14 Silvia.

I was not able to get 2008 Bliz Dunlop ER34 this time.

SD-1093BS Body Kit D1 Version 1093 Speed S14 Silvia
Kit come with this Decal Sheet.
Body Shell.

2mm CDV Pin LF Axle Shaft

I got a 2mm CDV Pin LF Axle Shaft

D-032 Front LF Axle Shaft for SD/CM/Drift Master


Drift Master is different Parts Number.
I was not able to get it this time.

D-033 Rear LF Axle Shaft for SD/CM

New Yokomo Deep Dish Wheels

I got a New Yokomo Deep Dish Wheels

I think that the Deep Dish Wheel of other kinds is released future.

TW-2713S RS Watanabe 8 Spoke 12mm off set


TW-1413NS 6Spoke Wheels 12mm off set
